General Properties

Design ID, Production ID

The model has two IDs: The Design ID, and the Production ID that is generated when publishing the model for production.

Restore Model Definition from the Published Version

You can use this option if you have made changes to the model after having published it, and you wish to discard those changes. Click the Restore  button and confirm the operation.

Enable Advanced Properties

Select this option and reload the model in order to enable the following options:

 Reload Data

If changes have occurred in the data source while working with a model, clicking the Reload Data option on the My World ribbon uploads the changes into the model. Use this option when (1) the data source has more data than you want to see in the model, (2) you have changed the format of a column (e.g. from number to integer) and you want to return to the original format.

Default Relationship

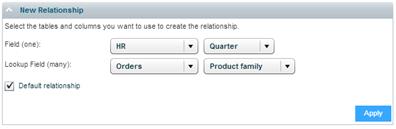

This option will appear in the Model Relationships dialog box when you click the Relationship  option on the My World ribbon, and click Add  to add a new relationship or click on the tab of an existing relationship.

If you deselect the Default Relationship option, there will be no connections between the data in the tables.

Rename Column

This option will appear in the column context menu.

Select the option to rename a column.

Rename Table

This option will appear in the table context menu.

Select the option to rename a table.
